MU-TRON III - Clon




[ Zoom ]


This is a MU-TRON III clon, original 1972 by Musitronics TM.
It has been modified because several components arenīt available today.
I changed the original optocouplers in the circuit which were Vactrol VTL5C3, so I used for my MU-TRON Clairex CLM 6200 and those are fantastic.
It sounds very Stevie Wonder... cool.

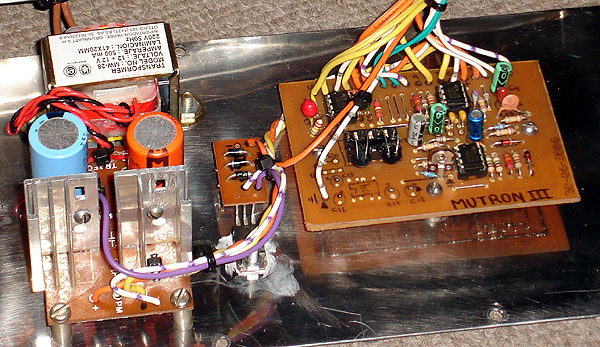

  • Inside the pedal [ pic 1 ]

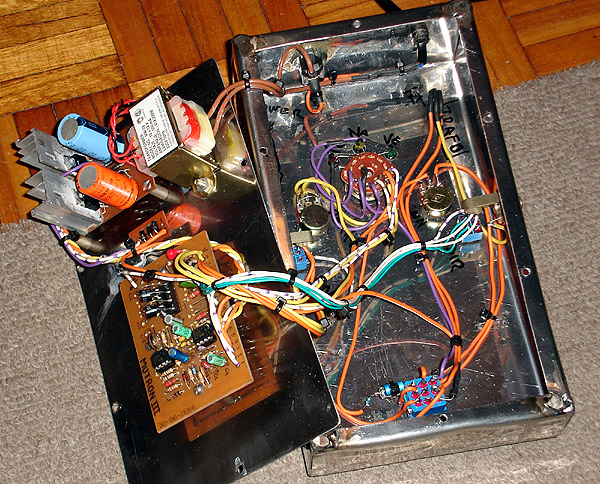

  • Inside the pedal [ pic 2 ]
  • Circuit [ Web ] Sorry, itīs in Spanish only.
  • Audio Sample
  • Circuit [ 3PDT Wiring ].

    •
